  • 11 week HW (3) Command line argument
    ROS2 Study 2021. 11. 16. 13:45
    728x90
    반응형

    $ ros2 run <package_name> <excutable_name>



    $ ros2 run <package_name> <excutable_name> <option> <value>









    1. revise action client node to command argument in code

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89
    90
    91
    92
    93
    94
    95
    96
    97
    98
    99
    100
    101
    102
    103
    104
    # add module for command line argument
    import argparse
    import sys

    # This actionClient node sends goal and recieve feedback and result

    import rclpy

    # import ActionClient class to make actionclient
    from rclpy.action import ActionClient
    from rclpy.node import Node

    # import Fibonacci interface type
    from my_interface_example.action import Fibonacci

    class FibonacciActionClient(Node):

        def __init__(self):
            # Initialize FibonacciActionClientclass by calling Node & make node name
            super().__init__('fibonacci_action_client')

            # the action client is created by ActionClient class
            self._action_client = ActionClient(
                self,
                Fibonacci,
                'fibonacci')

        def send_goal(self, order):
            goal_msg = Fibonacci.Goal()
            goal_msg.order = order

            # waits for the action server to be available
            self._action_client.wait_for_server()

            # send a goal to the server
            # return self._action_client.send_goal_async(goal_msg)

            # to get result
            # send a goal to the server
            # self._send_goal_future = self._action_client.send_goal_async(goal_msg)


            # to get feedback
            self._send_goal_future = self._action_client.send_goal_async(goal_msg, feedback_callback=self.feedback_callback)

            # the callback func. is called when future is completed. what is future??
            # 'future is completed' means that goal request is accepted or rejected !!
            self._send_goal_future.add_done_callback(self.goal_response_callback)


        def goal_response_callback(self, future):
            # future.result() returns goal_handle that is the instance of ClientGoalHandle class
            goal_handle = future.result()

            # check the goal was rejected or accepted
            if not goal_handle.accepted:
                self.get_logger().info('Goal rejected')
                return

            self.get_logger().info('Goal accepted')

            # requests the goal result asynchronously
            self._get_result_future = goal_handle.get_result_async()
            # get_result_callback func is called when future is completed
            self._get_result_future.add_done_callback(self.get_result_callback)

        def get_result_callback(self, future):
            result = future.result().result

            # print the result sequence
            self.get_logger().info('Result: {0}'.format(result.sequence))

            # shutdown the client node
            rclpy.shutdown()

        def feedback_callback(self, feedback_msg):
            feedback = feedback_msg.feedback
            # when the feedback is received, partial_sequence is printed
            self.get_logger().info('Received feedback: {0}'.format(feedback.partial_sequence))
            #rclpy.shutdown()

    def main(argv=sys.argv[1:]):
        parser = argparse.ArgumentParser(formatter_class = argparse.ArgumentDefaultsHelpFormatter)
        parser.add_argument(
            '-g',
            '--goal_order',
            type = int,
            default=10,
            help='Goal value of order of fibonacci sequence'
        )

        args = parser.parse_args()

        rclpy.init(args=argv)

        action_client = FibonacciActionClient()

        future = action_client.send_goal(args.goal_order)

        # rclpy.spin_until_future_complete(action_client, future)

        rclpy.spin(action_client)
    if __name__ == '__main__':
        main()
    cs

    revised line is

    import argparse,

    import sys,

    and main()



    2. test

    $ ros2 run fibonacci_rclpy_action_pkg fibonacci_action_server

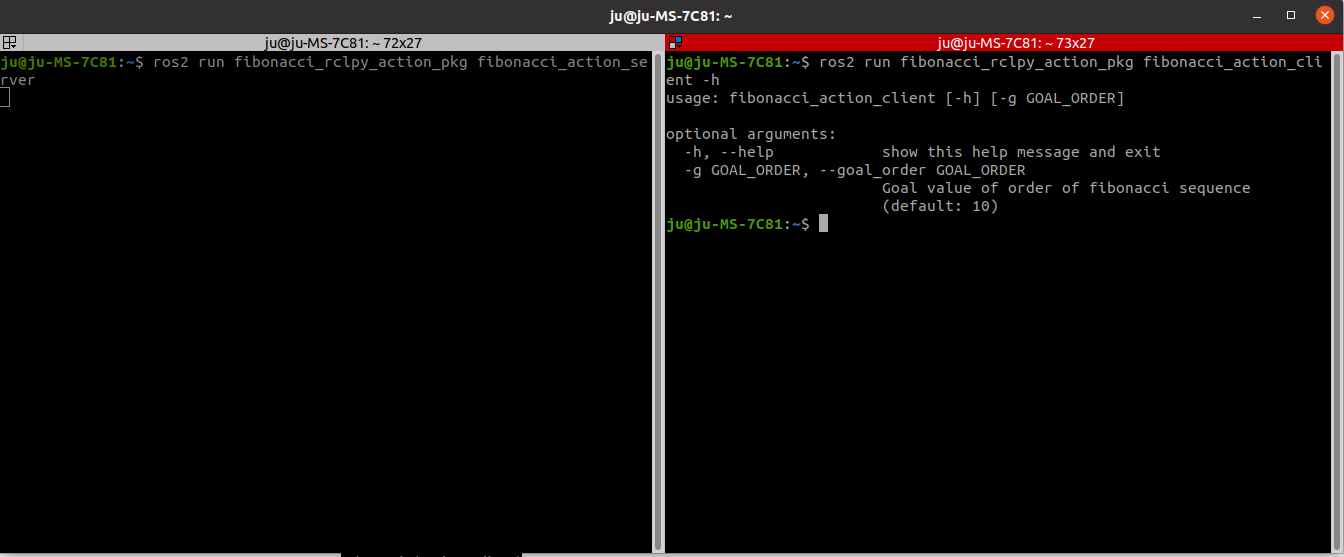

    $ ros2 run fibonacci_rclpy_action_pkg fibonacci_action_client -h

    $ ros2 run fibonacci_rclpy_action_pkg fibonacci_action_server

    $ ros2 run fibonacci_rclpy_action_pkg fibonacci_action_client -g 5
